Specs and installation
How Woodium is made and installed
Material facts and installation details for your contractor.
Material
Made of fibre cement
- Type
- Fibre cement panel, exterior grade
- Composition
- 85% Portland cement, 15% cellulose fibre
- Process
- Flow-on technology, pressed with a wood grain
- Density
- 1.26 g/cm³
- Asbestos
- None. 100% asbestos-free
- Colour
- Natural grey, wood-stained or painted on site
- Properties
- Weatherproof, fire resistant, termite-proof, screwable, stays straight, consistent size
- Made in
- India
Installation
Screwed to a frame or slab
Woodium is screwed to a steel frame, wood frame or concrete slab. Plan joint types and positions before you start, keep every screw in one line, and fill butt joints with PU sealant.
| Panel | Screw length | Counterbore |
|---|---|---|
| 11 mm | 32 mm | 3 mm deep |
| 16 and 18 mm | 32 mm | 5 mm deep |
| 22 and 25 mm | 45 mm | 5 mm deep |
Use #7 screws. Keep each screw 25 mm from the panel edge.
Five steps per screw
-
1
Pre-drillDrill a pilot hole through the panel.
-
2
CounterboreMake the counterbore wider than the screw head.
-
3
Screw inScrew into the frame. On concrete, drill the slab and insert a plastic plug first.
-
4
Cover the screw headFill the hole with tile grout using a 1 inch scraper.
-
5
FinishFlatten when half-dry, sand smooth with #240 paper, then clean off the rest.
On site
Walls, decks, storage and tools

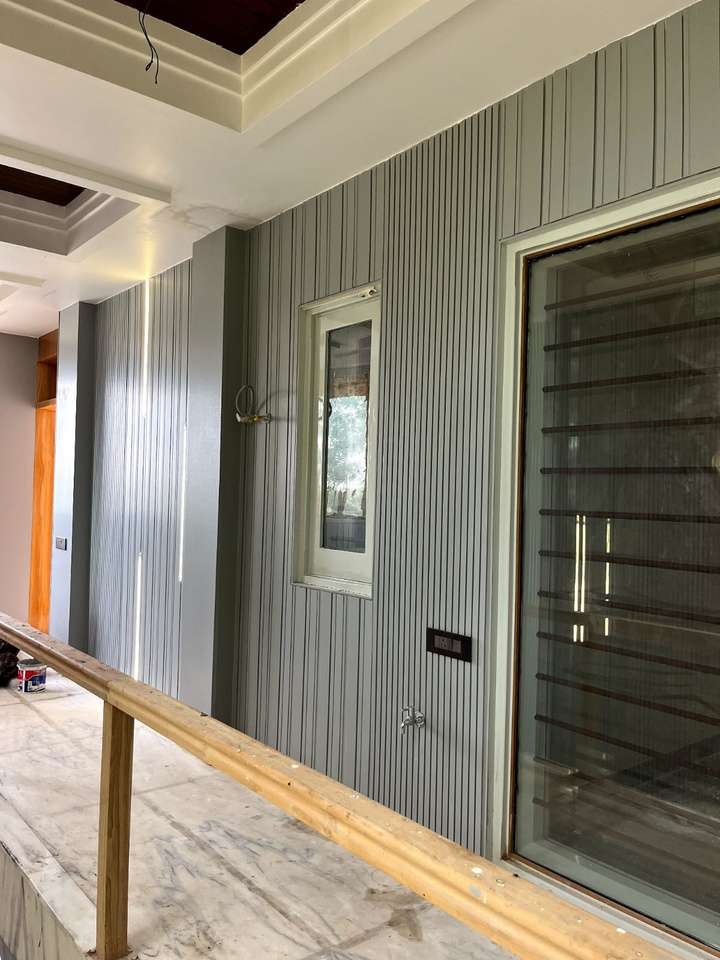

Walls and facades
40 × 40 cm
frame spacing
Double
frame at every joint
3–5 mm
gap between panels
Start from the bottom row.
Deck floors
1%
slope on the base floor
30 cm
frame spacing
50 mm
#8 tapping screws
Fischer #6 or #8 plugs.
Storage and handling
50 cm
between supports
100 cm
highest stack
2 people
to carry each plank
Store flat and dry.
Tools
Circular sawMitre sawTable sawJigsawRouterSanderDrillNail gun
Standard woodworking tools.
