Textured décor
Flute

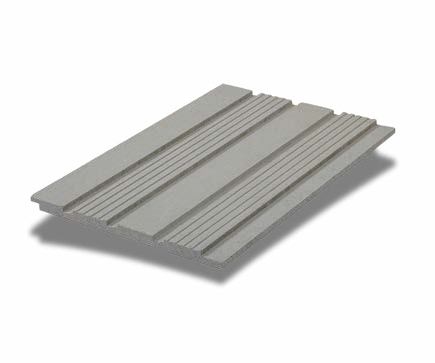

A plank with a band of fine grooves running its length, for feature walls, entrance facades and ceilings.
- Thickness
- 11 mm
- Width
- 200 mm
- Length
- 2900 mm
- Finish
- Wooden grain
- Density
- 1.26 g/cm³
- Colour
- Natural grey, painted or stained on site
- Use
- Facade, wall, ceiling
Cross-section
The profile seen from the cut end, in millimetres.
How it's installed
Screwed to a steel frame, timber frame or concrete slab. Here are the numbers for an 11 mm panel like Flute.
- Screw length
- 32 mm
- Counterbore depth
- 3 mm
- Screw from edge
- 25 mm
- Frame spacing
- 40 × 40 cm
- Joint gap
- 3–5 mm
- Joints
- PU sealant, or left open
Similar profiles
Enquiry
Get a quote for Flute
Tell us your city and roughly how much area you need. We will get back to you soon with a price.
